This Stageline SL100 mobile stage rental is the 20×24 stage with extra 8×4 stage decking installed on the sides to expand the stage out. This outdoor portable stage trailer is also great for small to medium scale events such as festivals, concerts, graduations, and speaking events. It is pulled with a pickup truck and has hydraulics to be fully setup in about 90 minutes. The stage roof is solid aluminum and fiberglass, so it is rain and wind proof. It has an impressive amount of weight capacity in the roof system for lights and sound. This stage is great for events with up to 5,000 people in the audience.
Check 20×24/40 Stage Availability:
|
|
Stage Specifications:
- 20×24 Stage Floor Size

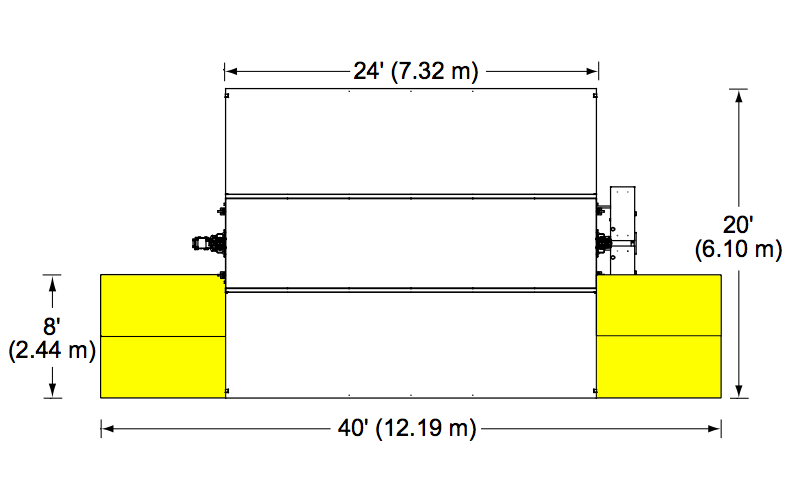

- Includes (4) 8×4 stage decks to expand the stage to 32ft or 40ft wide in front (see yellow)
- 3’-6” to 4’-3” Deck Height
- Skirting
- Guard Rails
- (2) Stairs with hand rails
Roof Specifications:
- Solid aluminum and fiberglass roof
- 20′ Overall height from ground
- 800 lbs per side audio weight capacity (2013 and 2016 model)
- Reduced to 500lbs per side with left/right vertical banners
- 1,500 lbs per side audio weight capacity (2022 model)
- Reduced to 1,200lbs per side with left/right vertical banners
- 6,500 lbs max roof weight capacity
- 3,800 lbs lifting capacity
- 1,200 lbs of LED video wall weight capacity back stage (2013 and 2016 model)
- 2,000 lbs of LED video wall weight capacity back stage (2022 model)
- Fire retardant wind wall backdrop
- 115 mph wind resistance without wind walls
- 77 mph wind resistance with wind walls
Banner Specifications:
- 4 Banner opportunities
- See Stageline SL100 banner ad sizes here, including a recommended vendor with pricing for each banner
Videos:

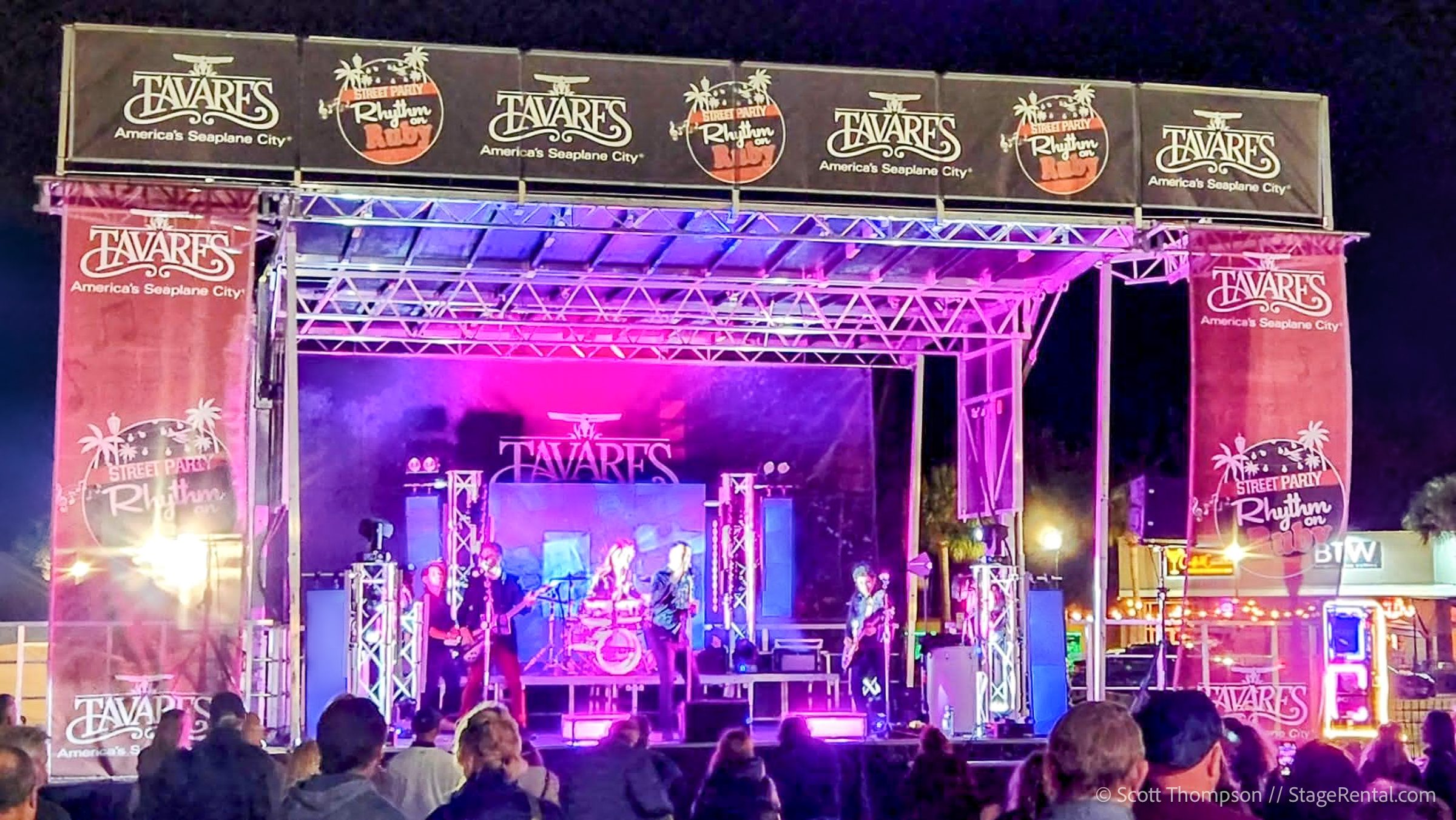

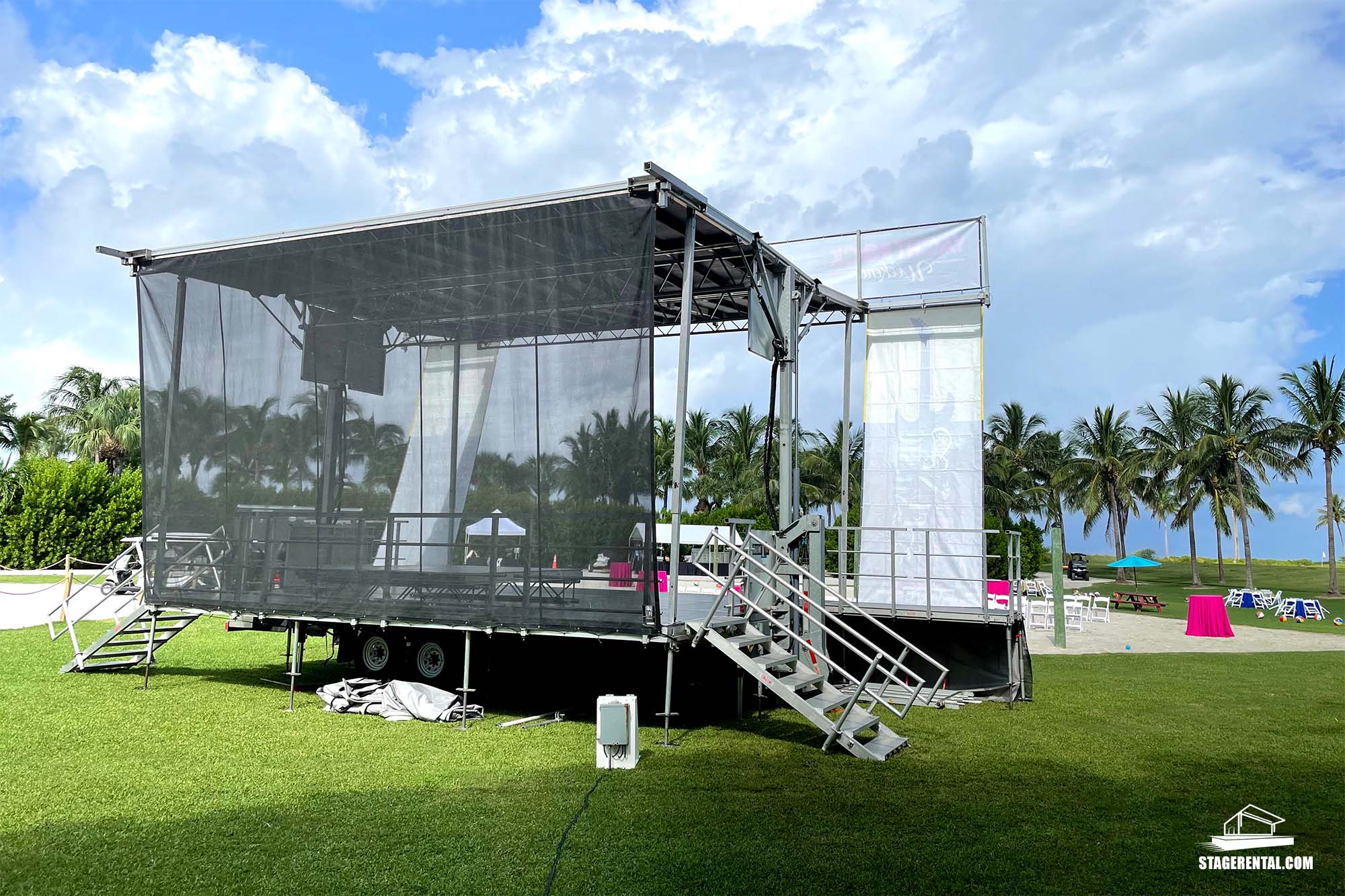

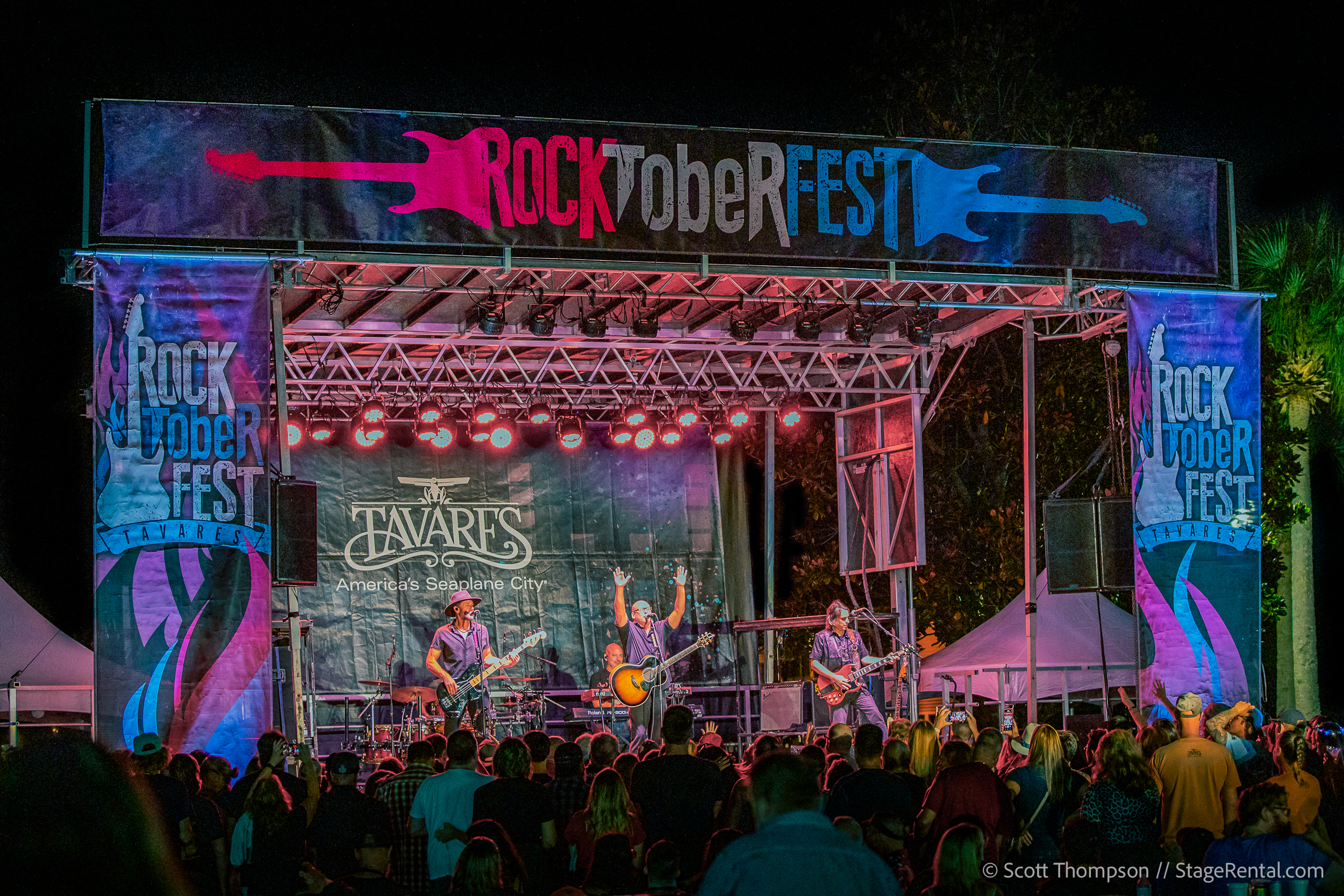

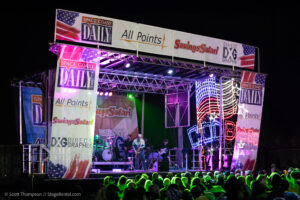

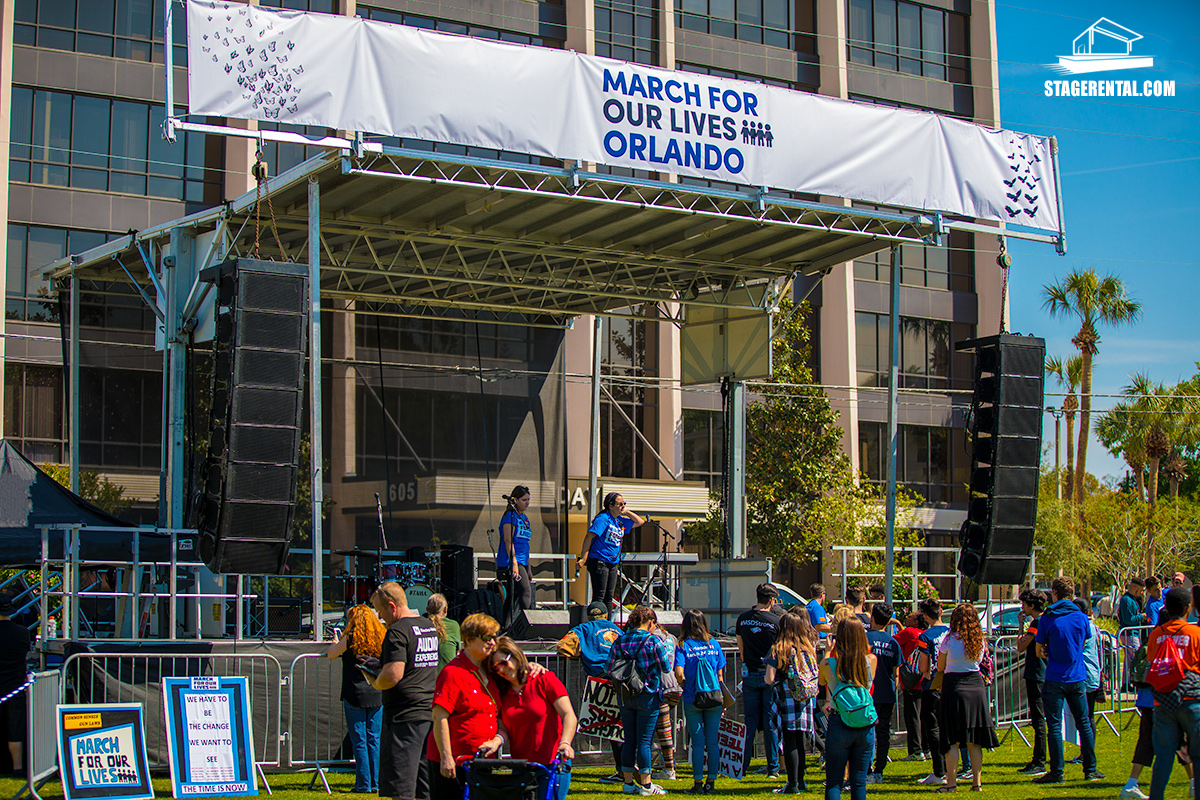

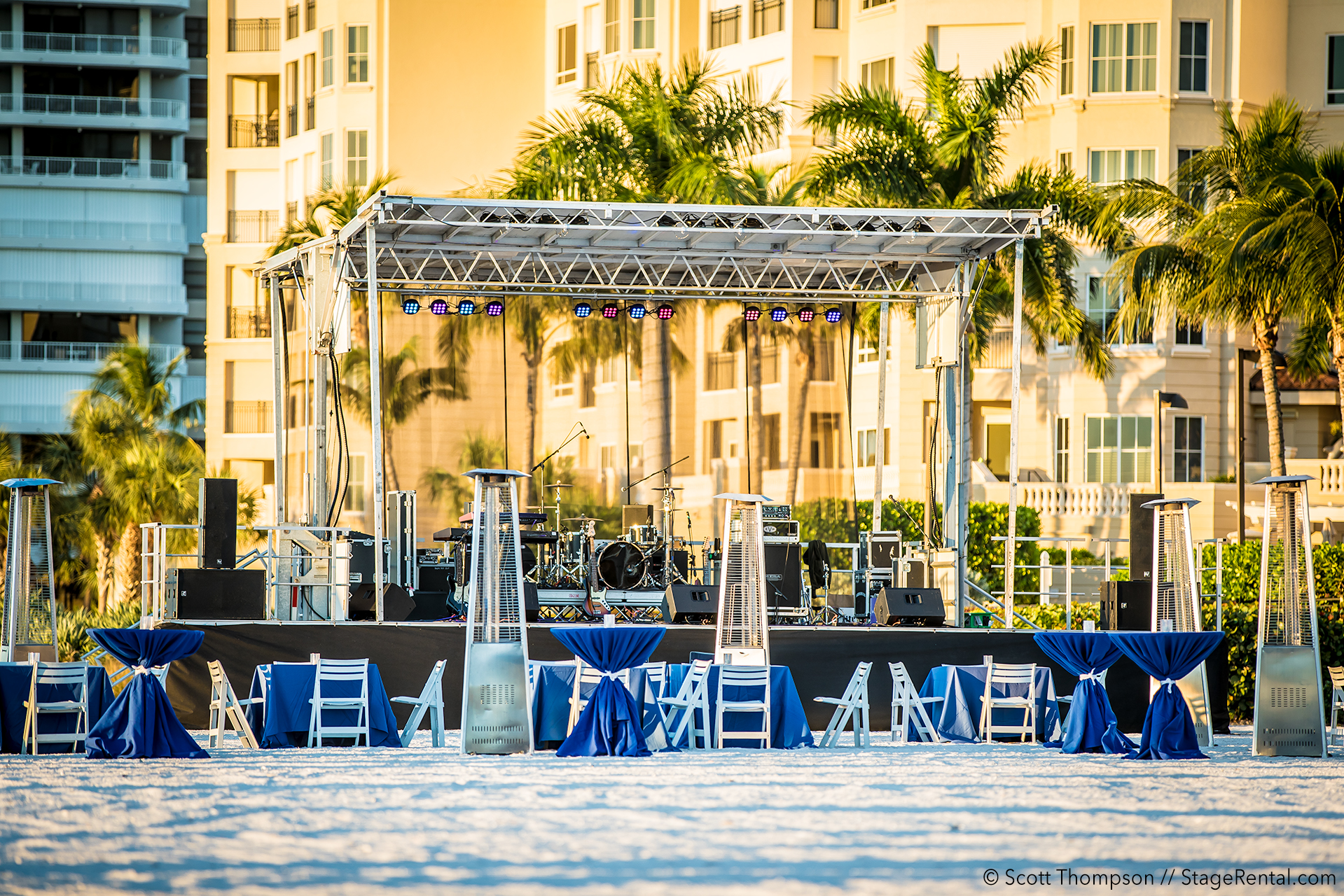

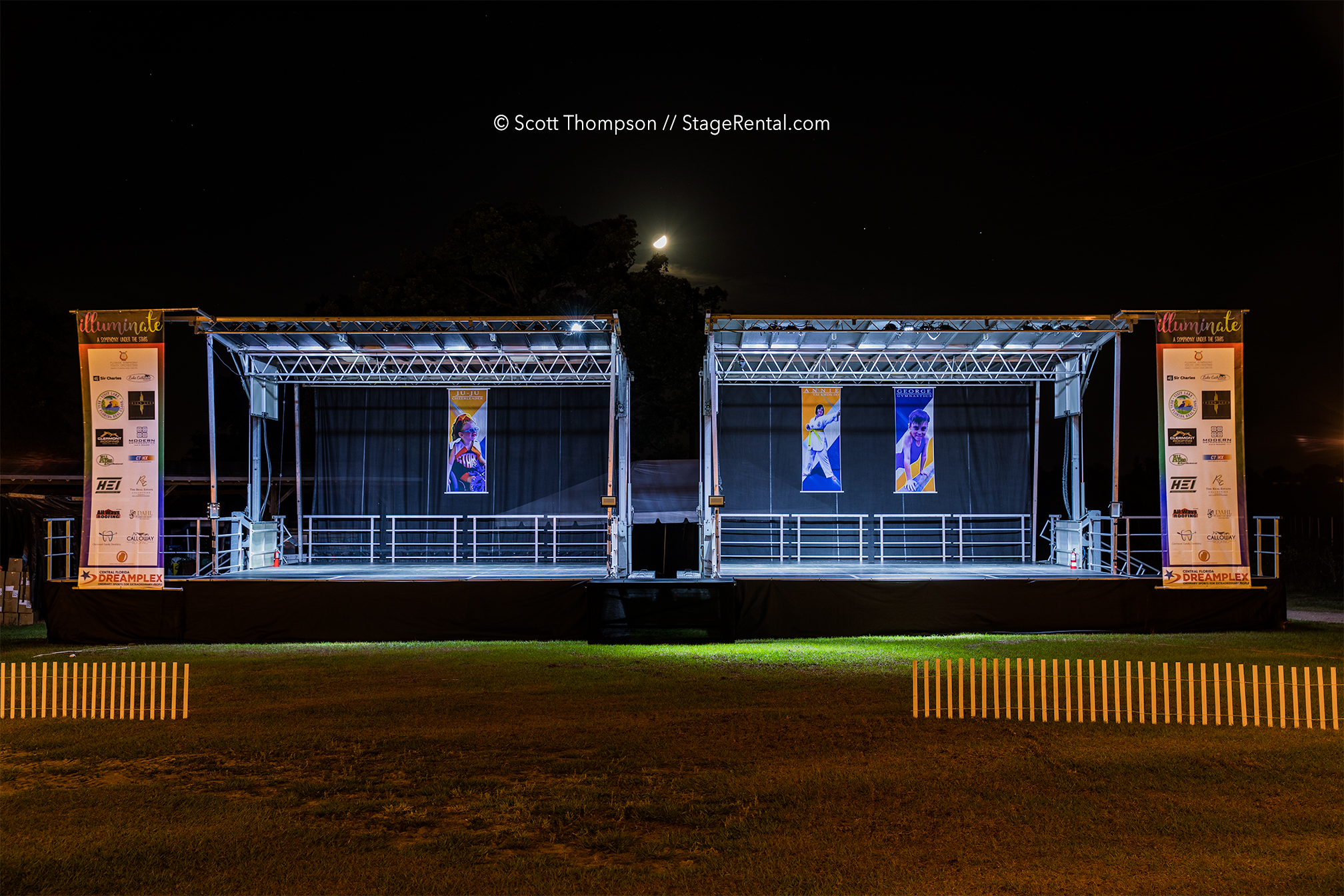

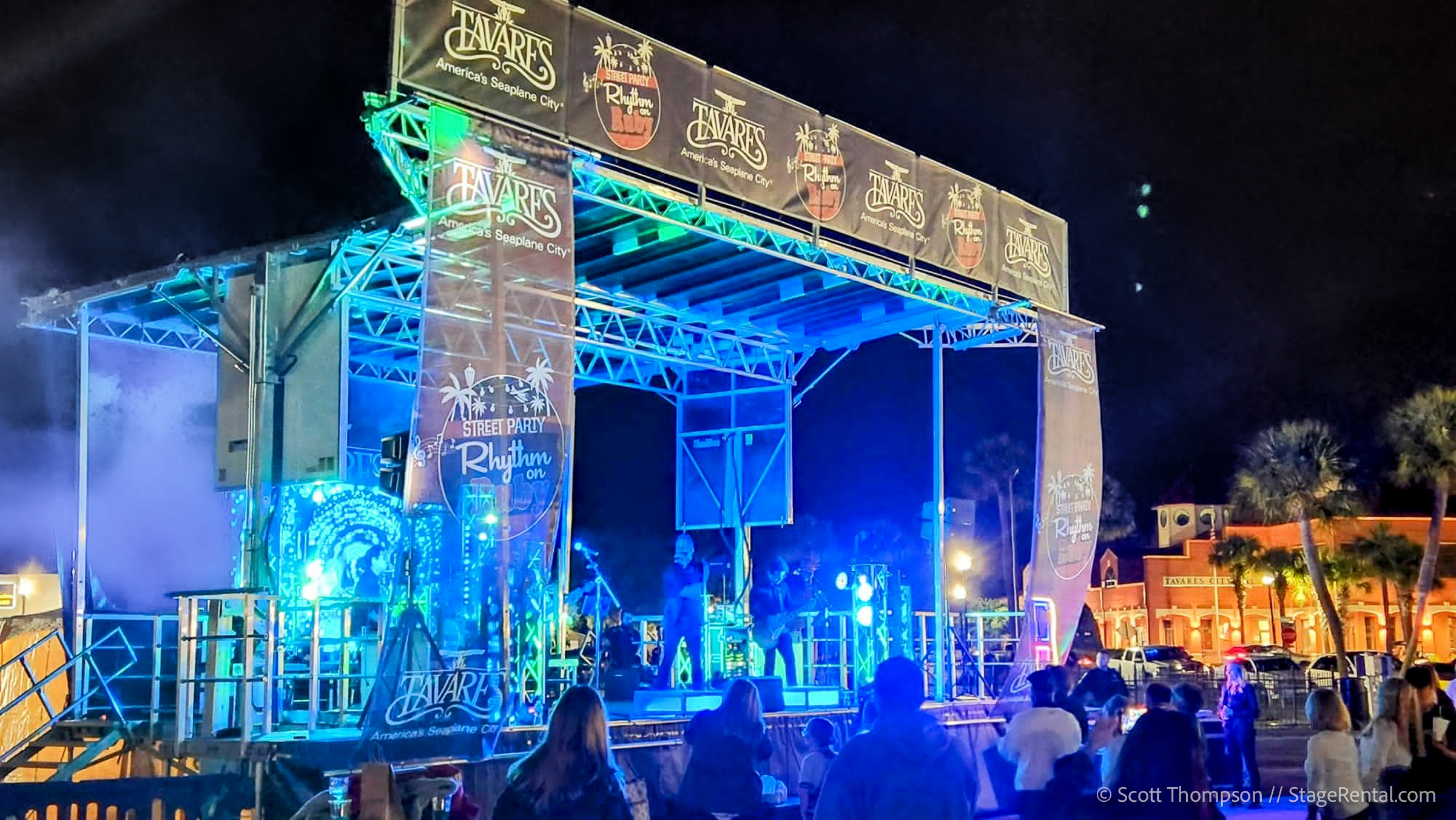

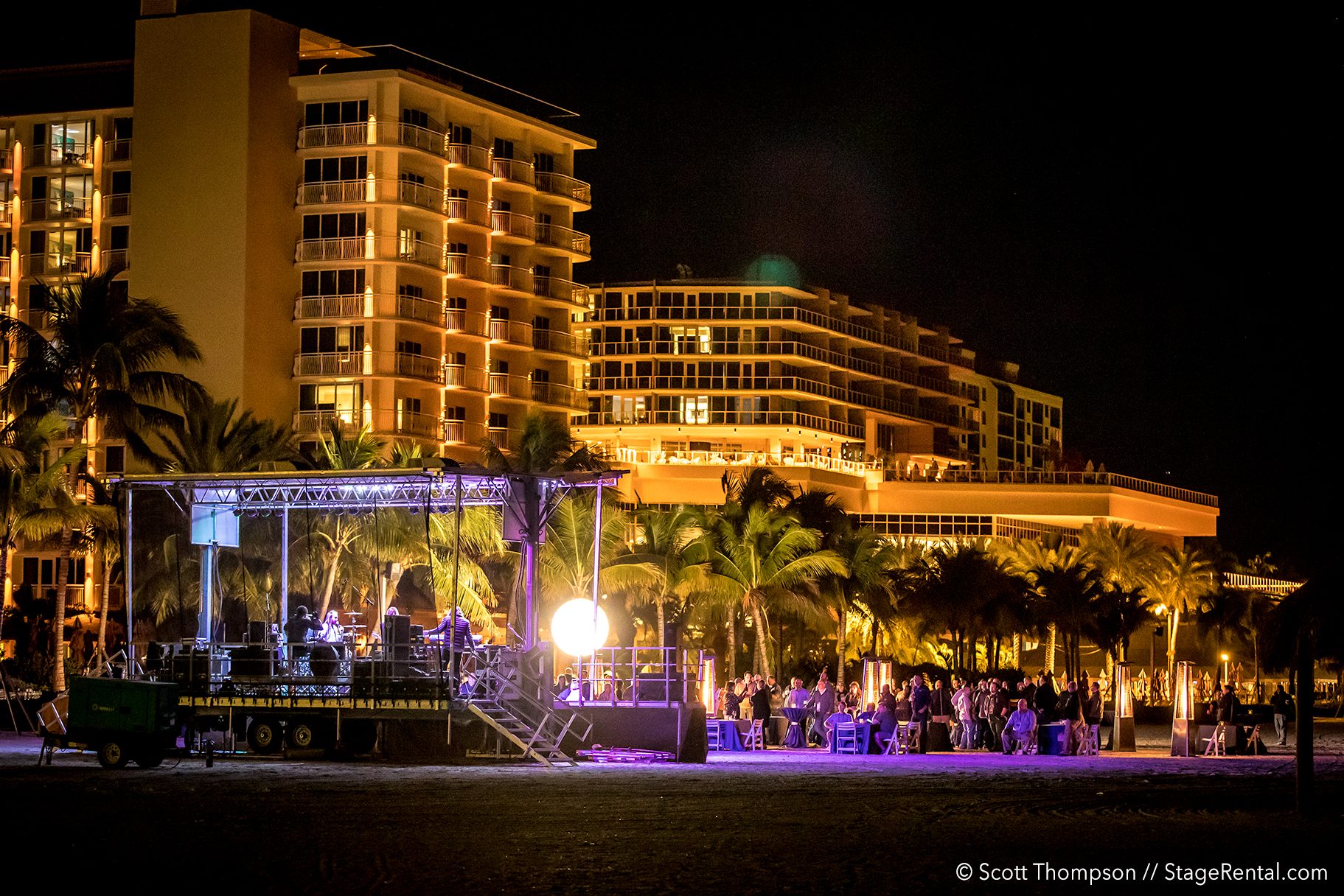

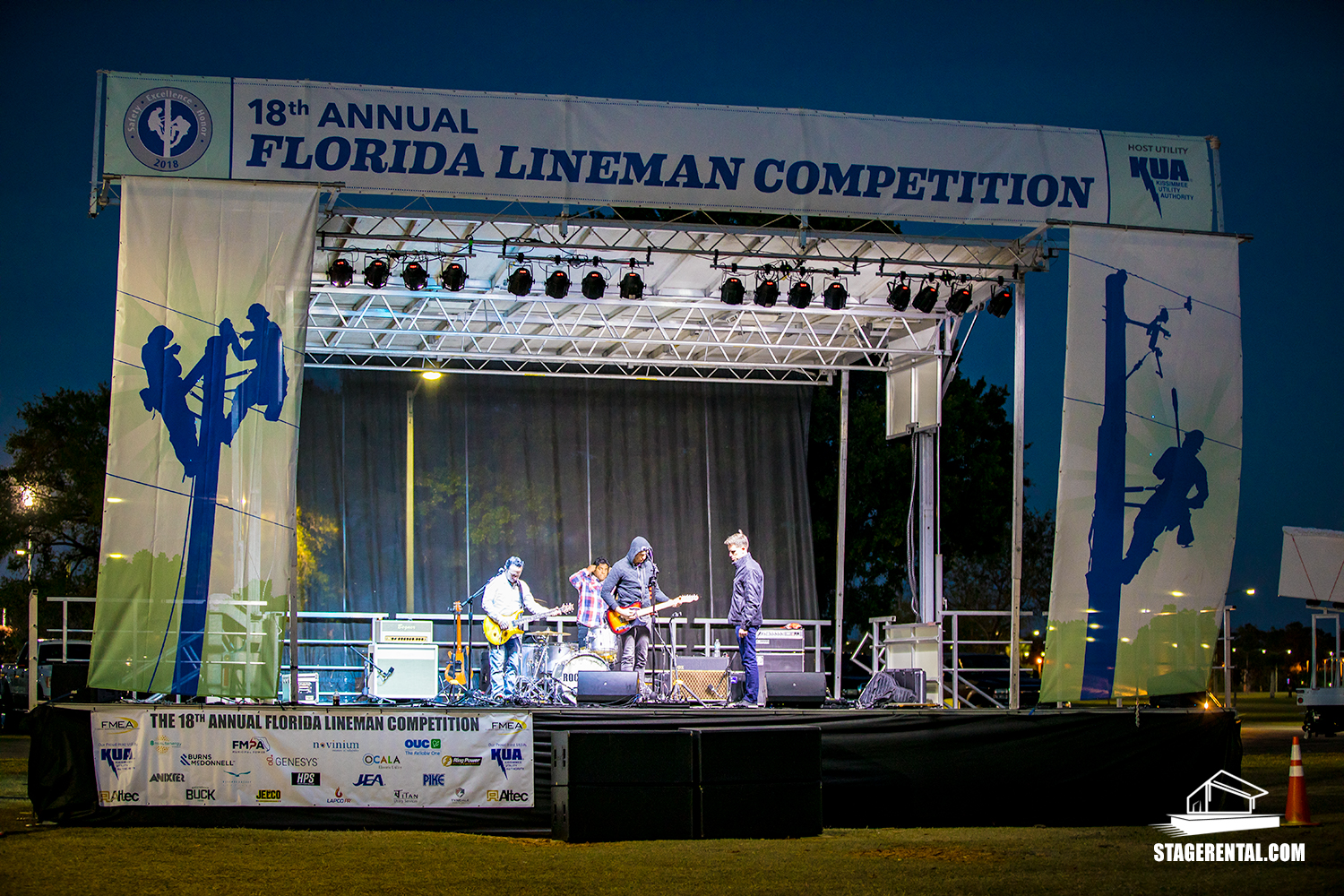

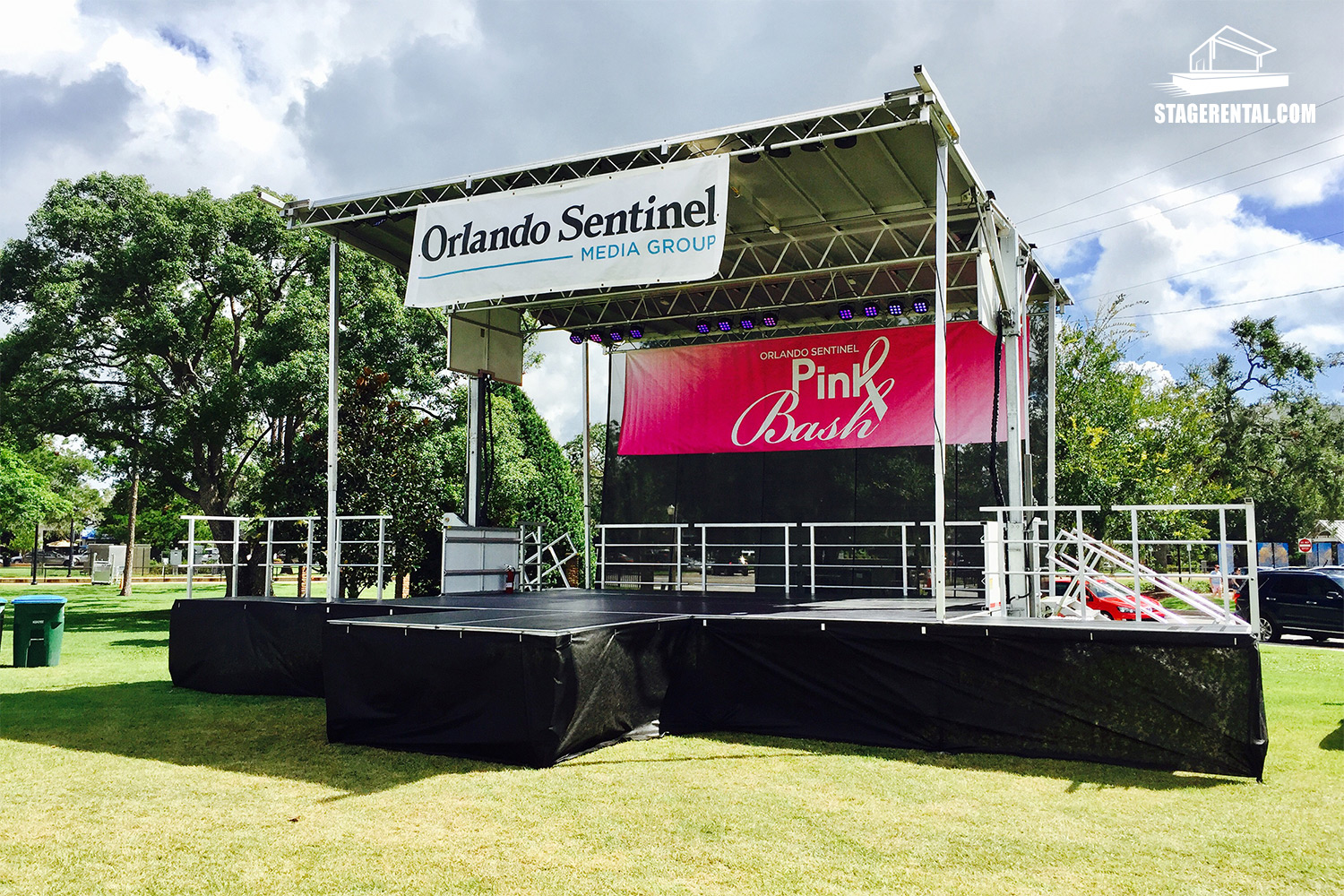

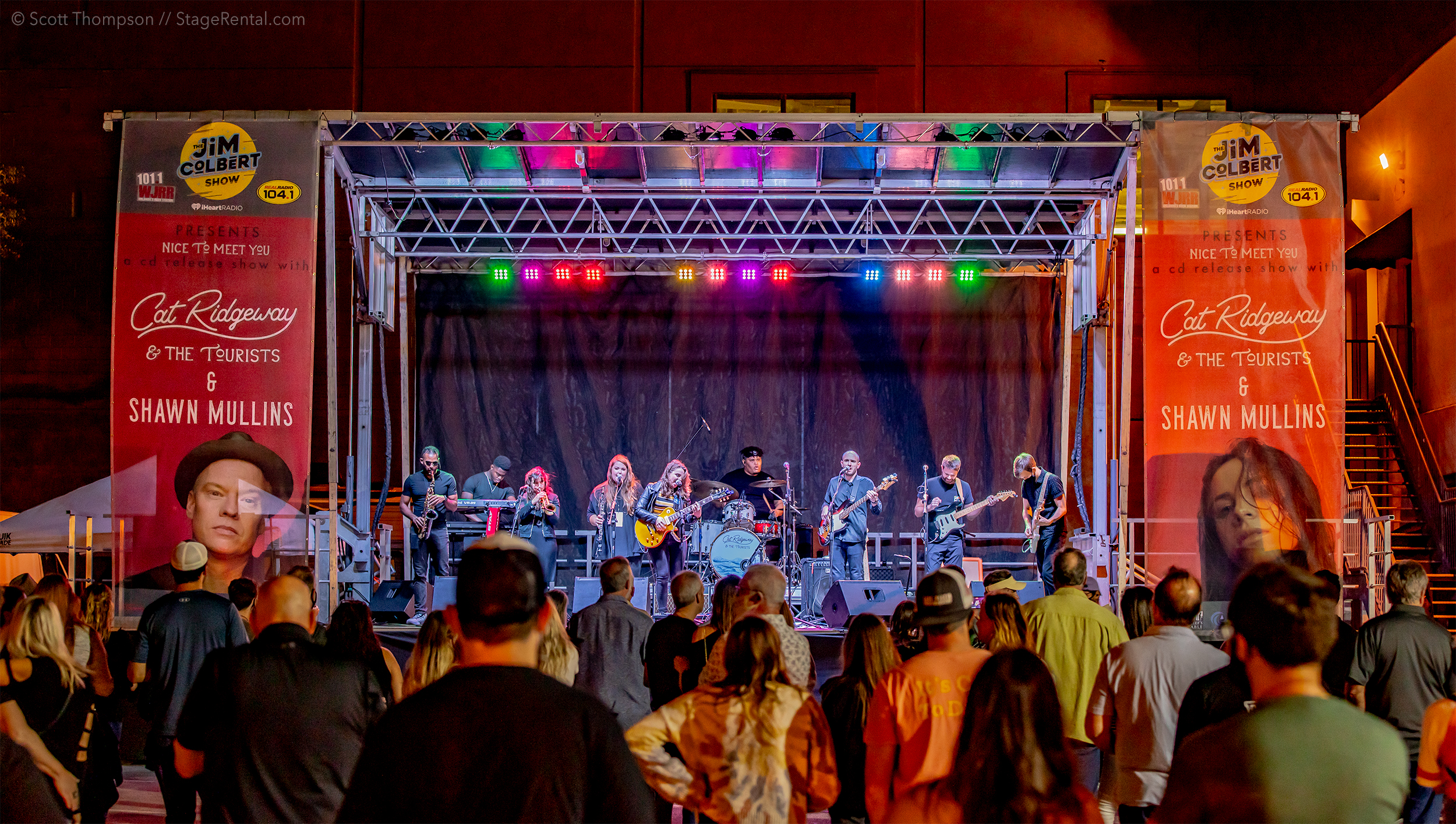

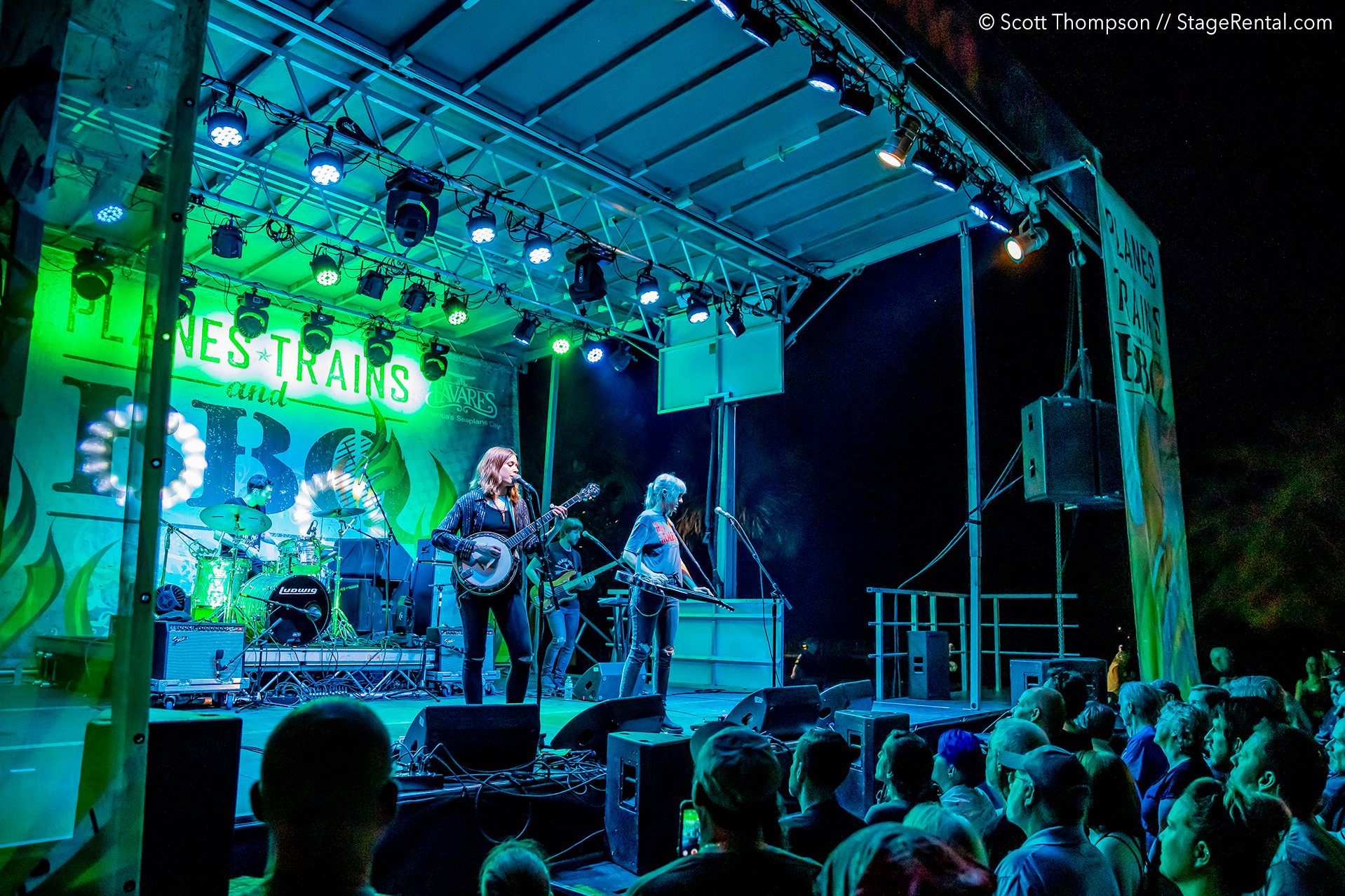

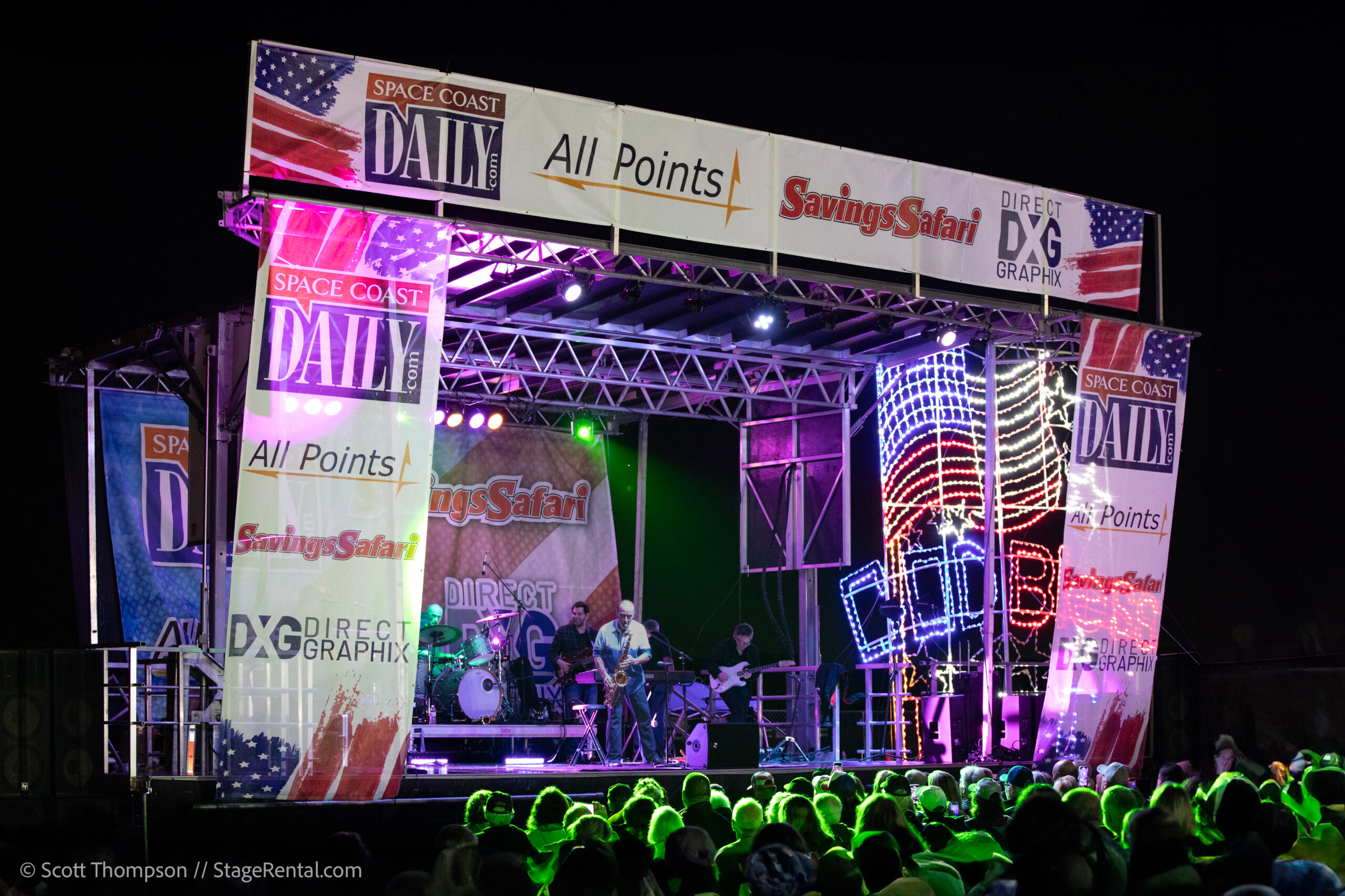

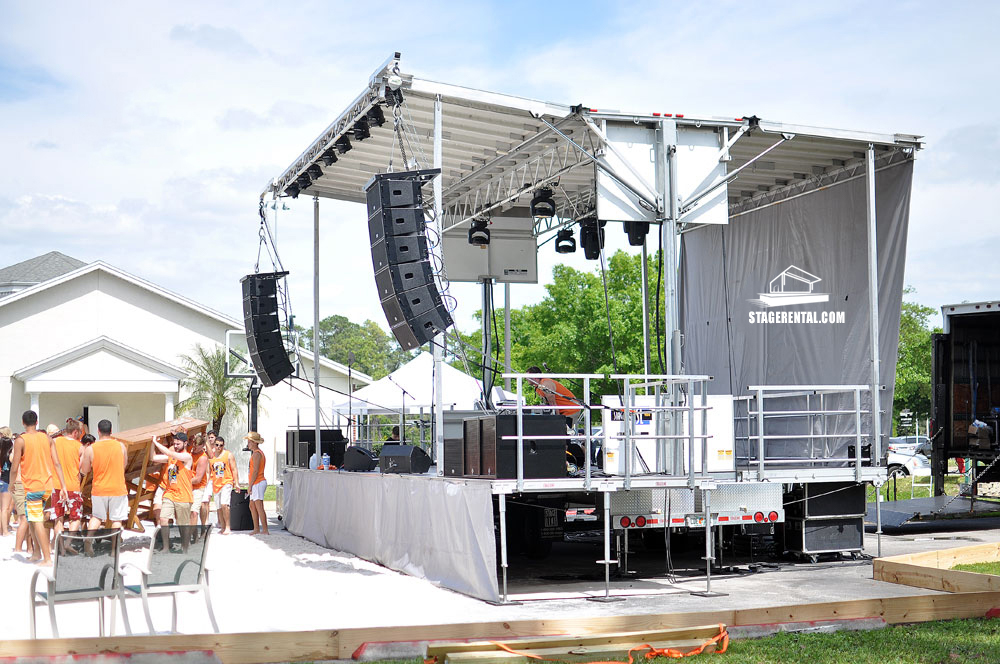

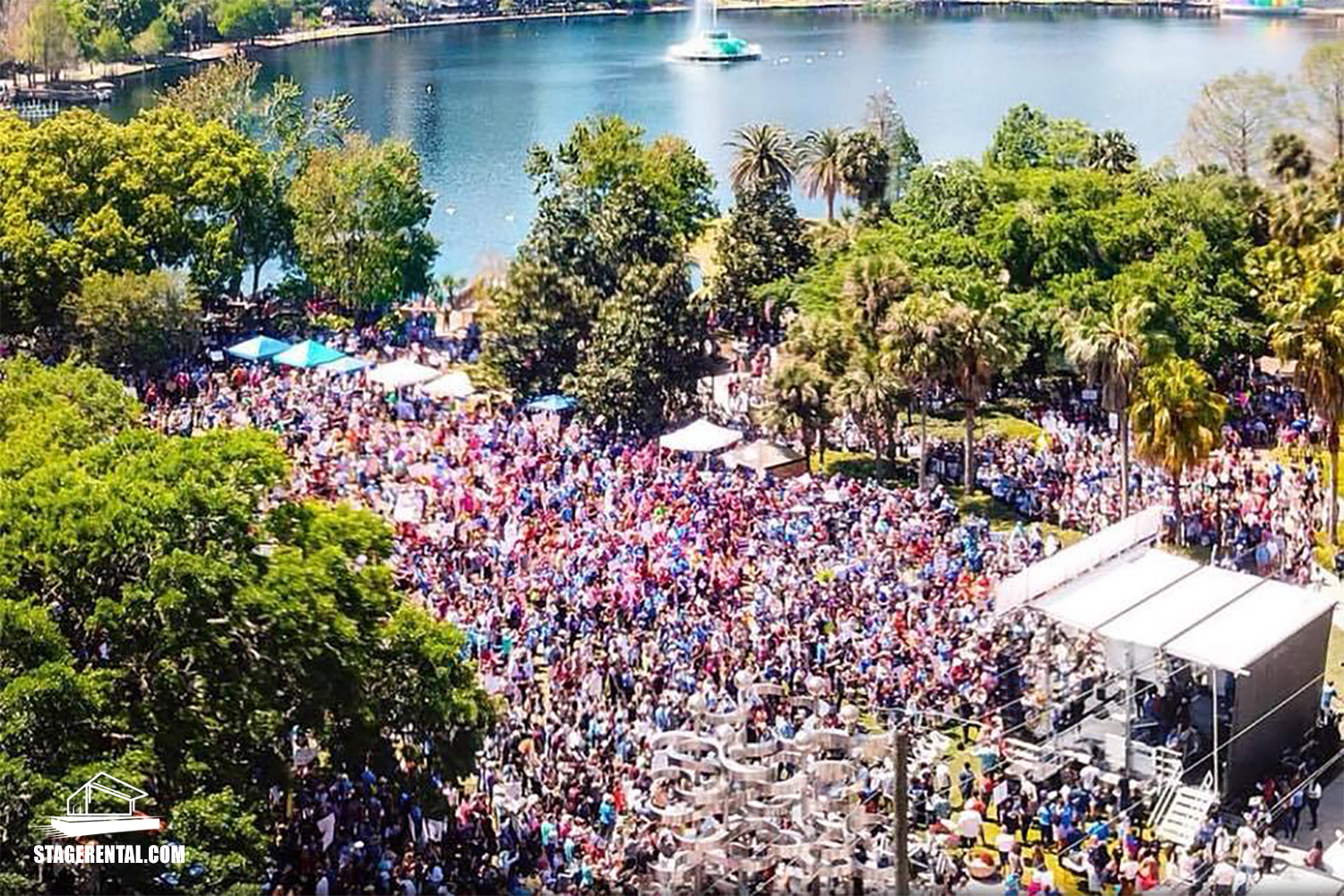

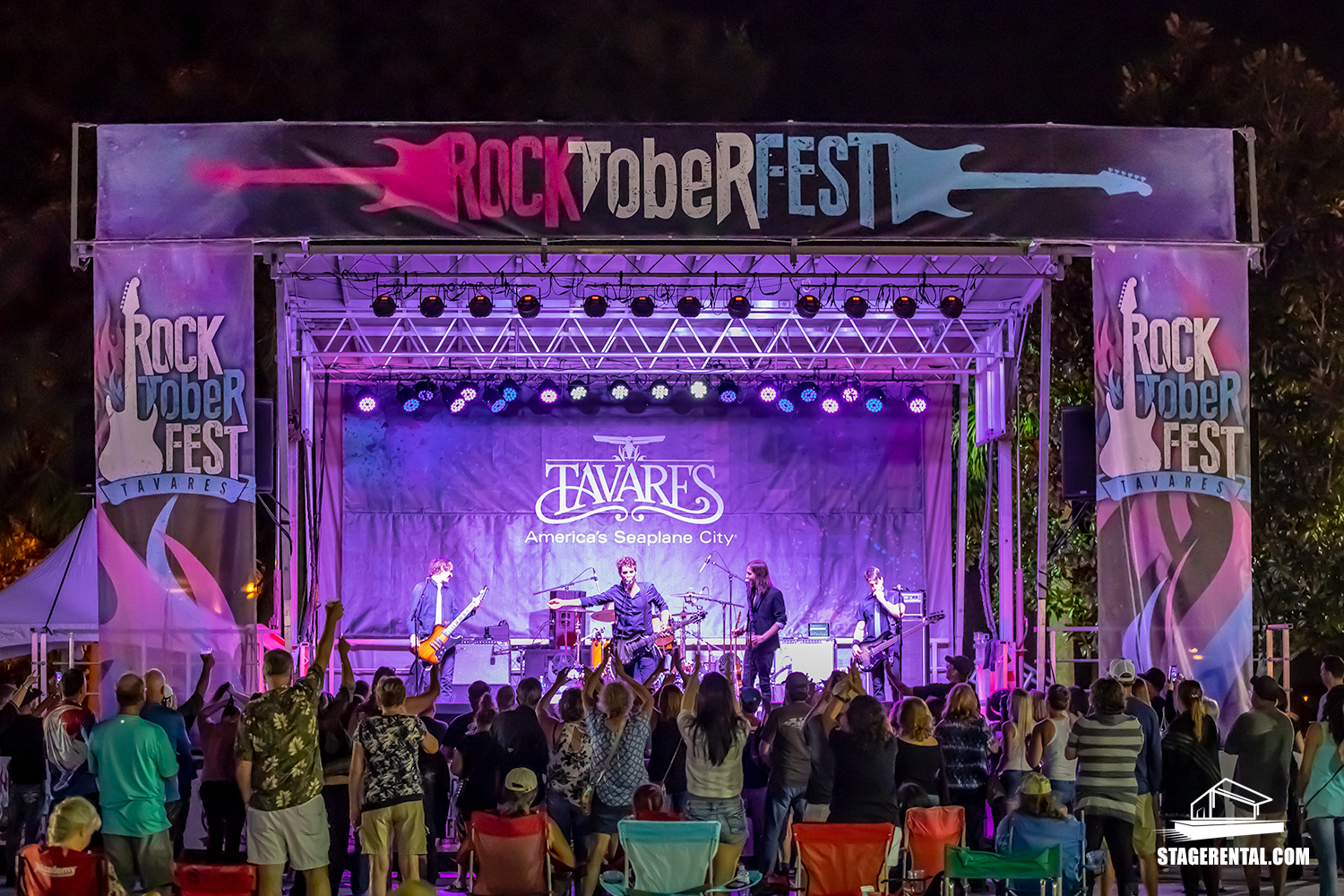

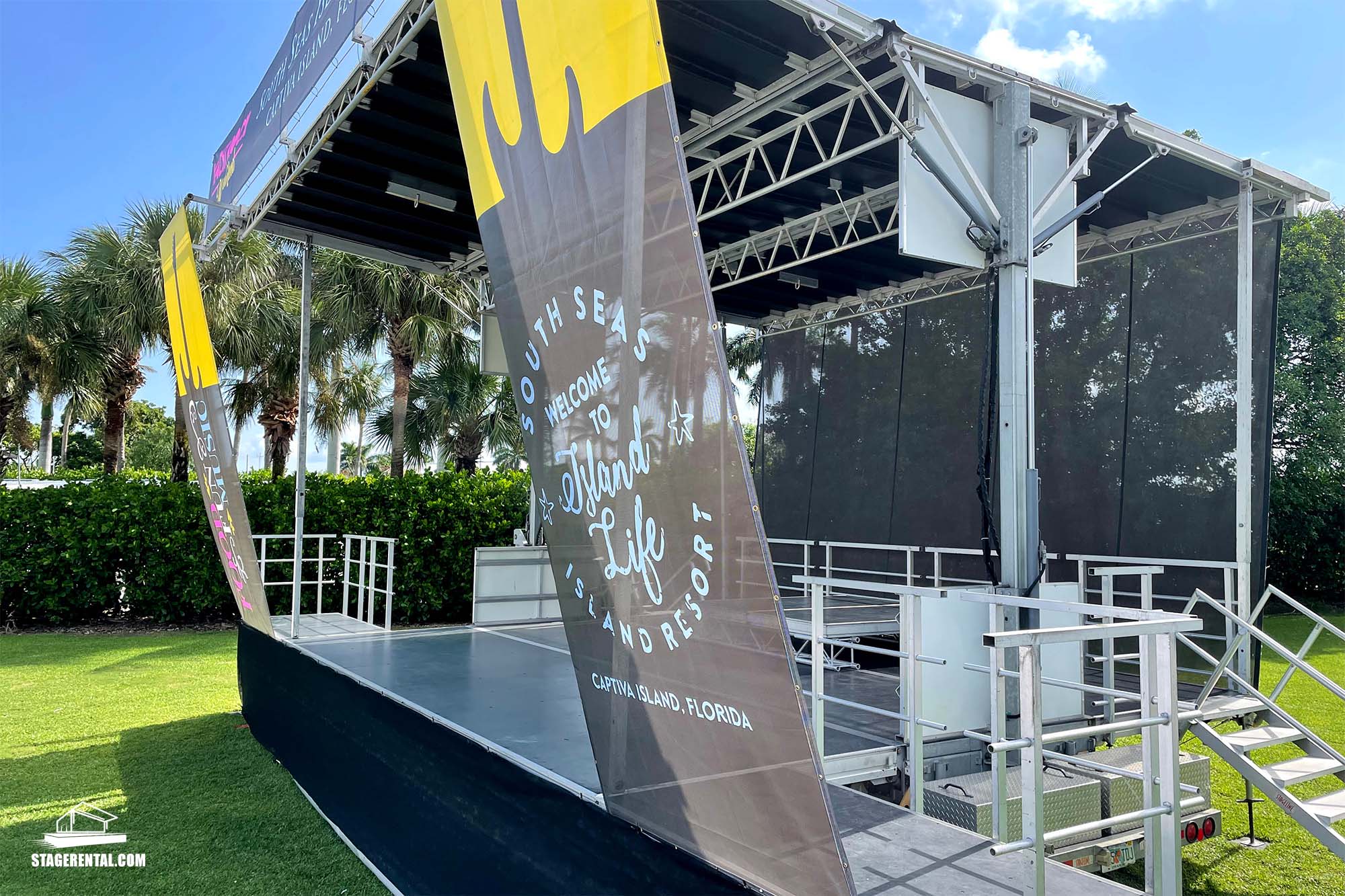

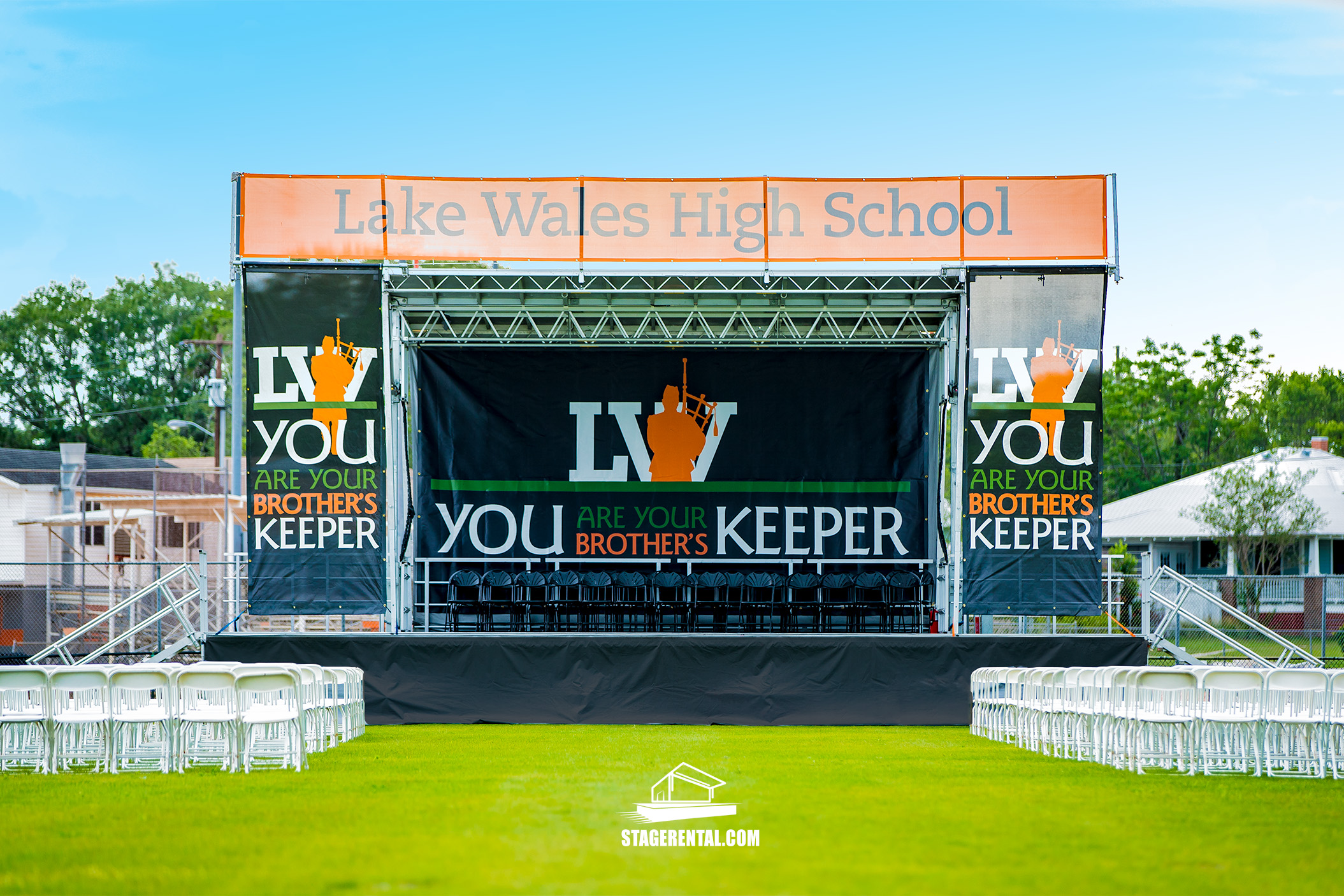

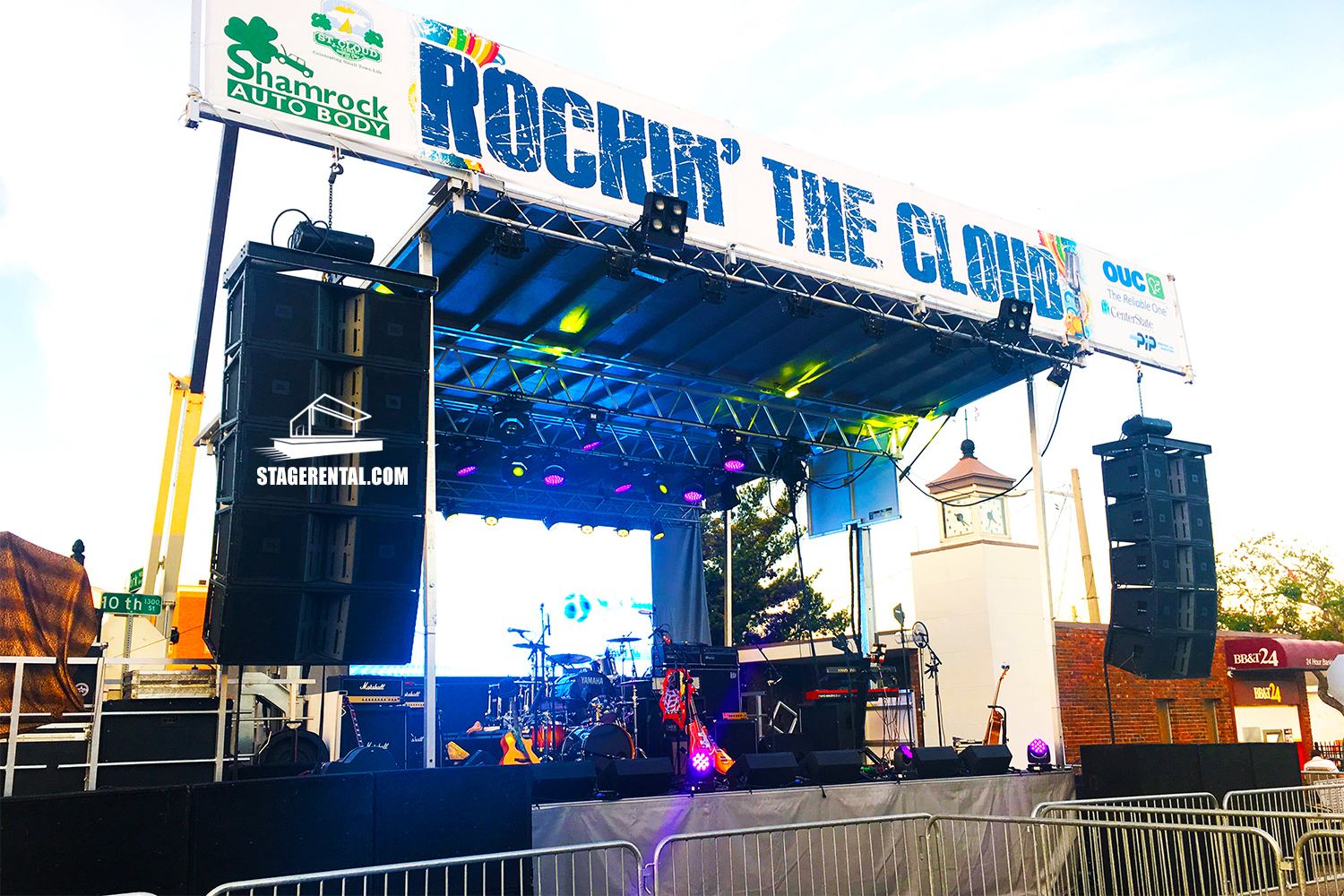

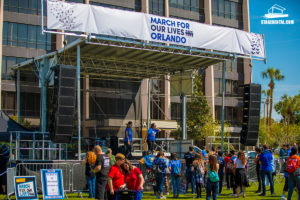

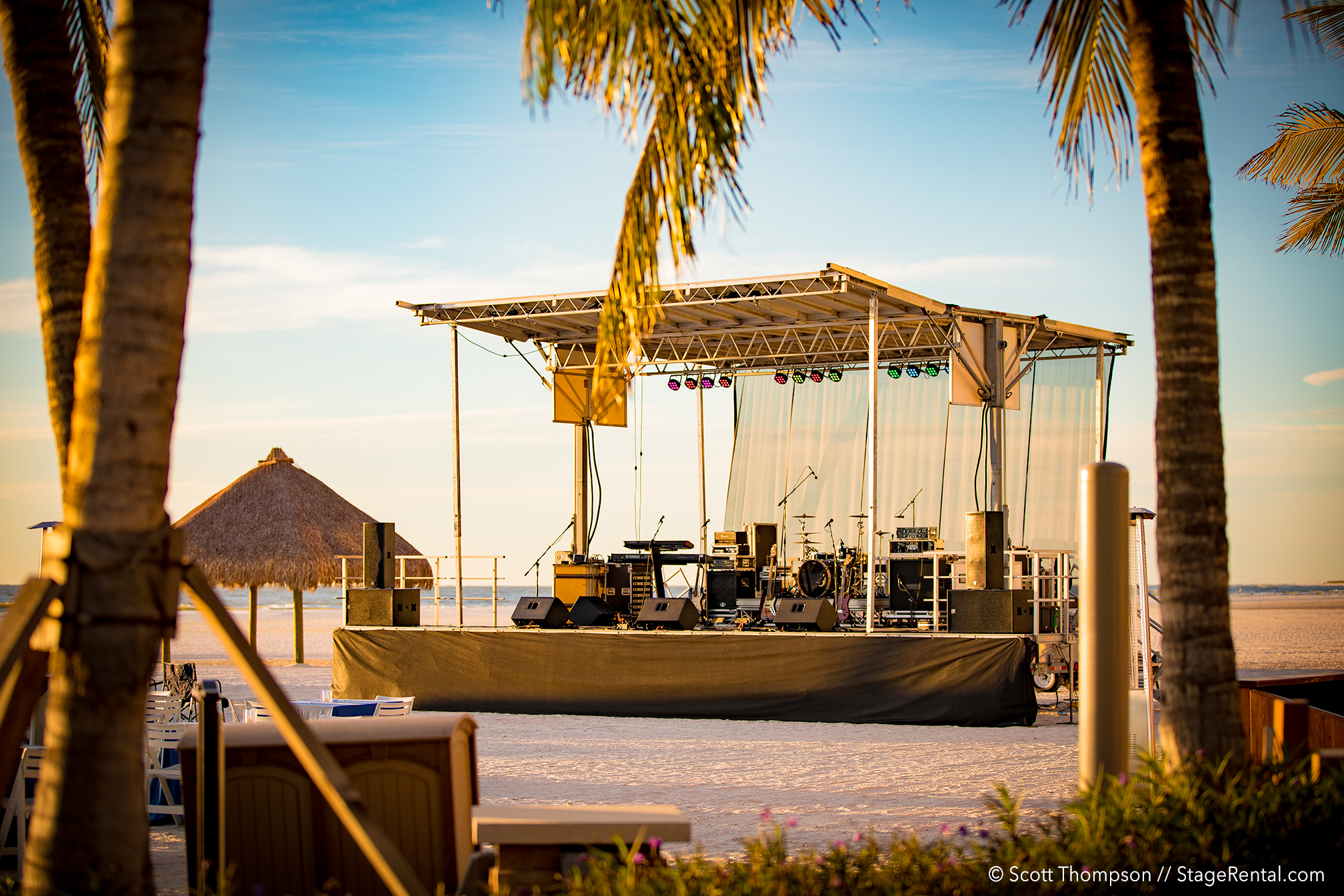

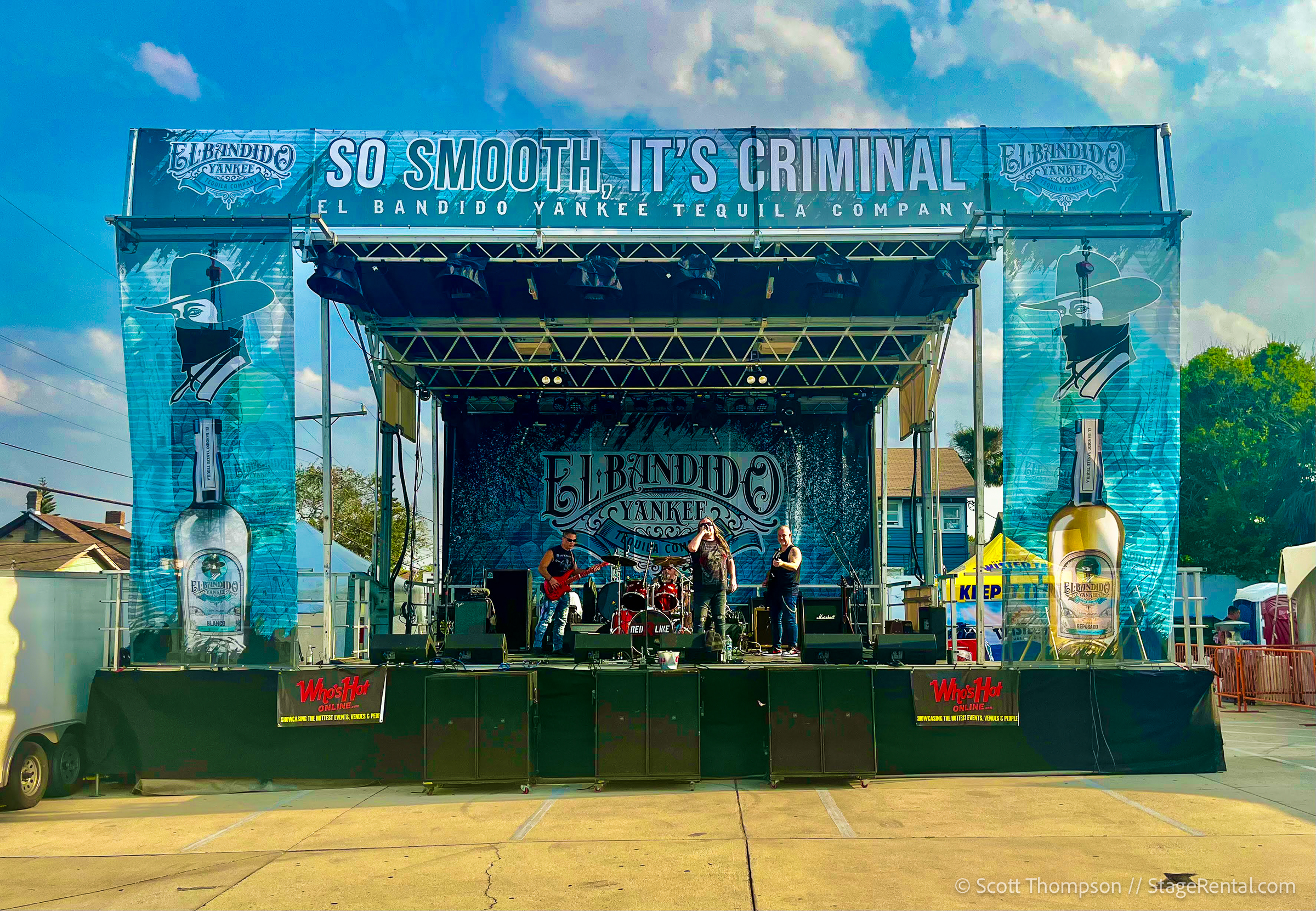

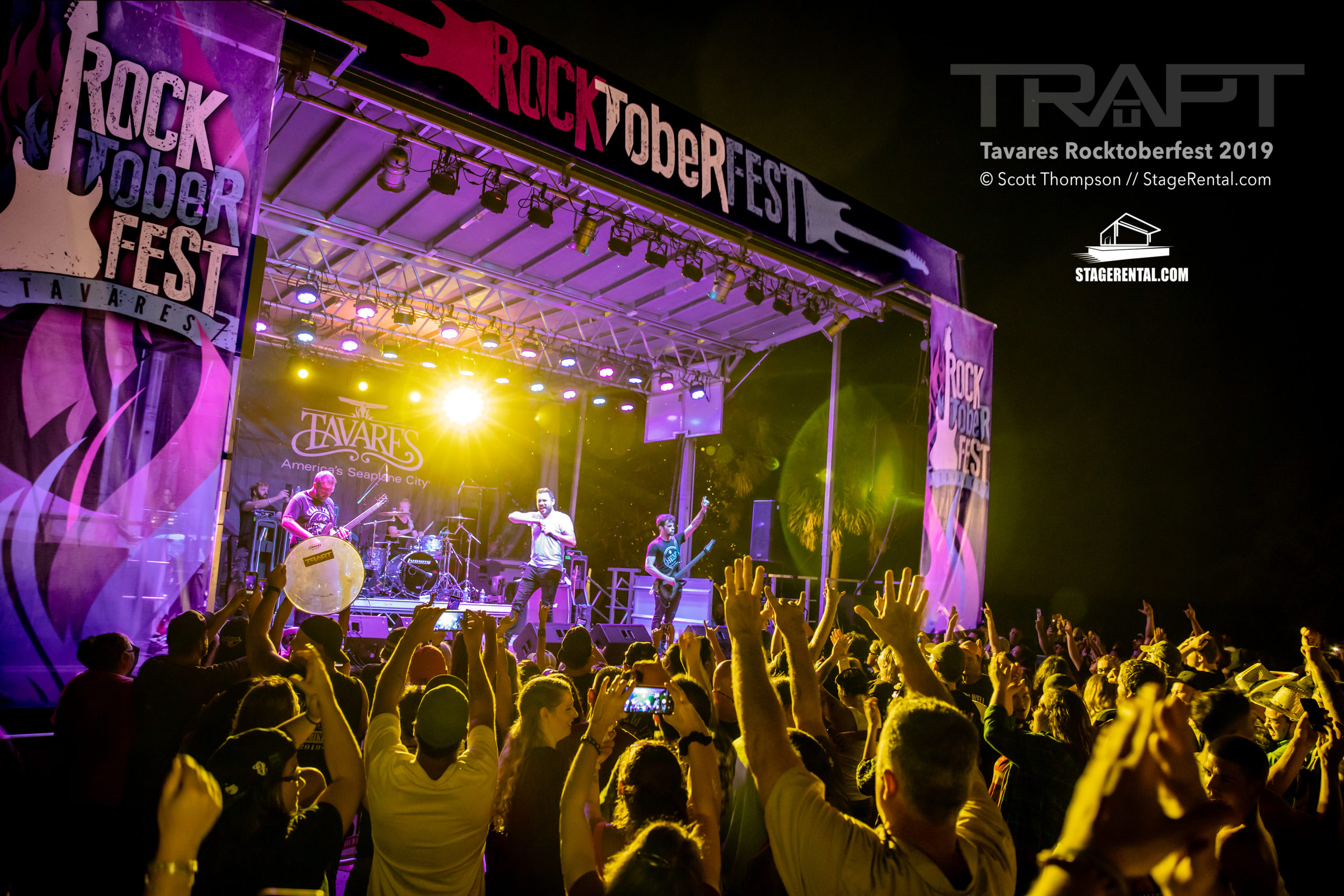

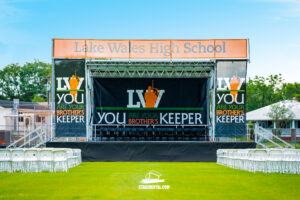

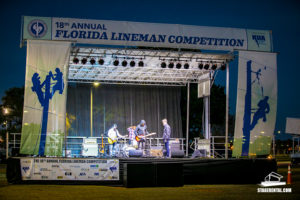

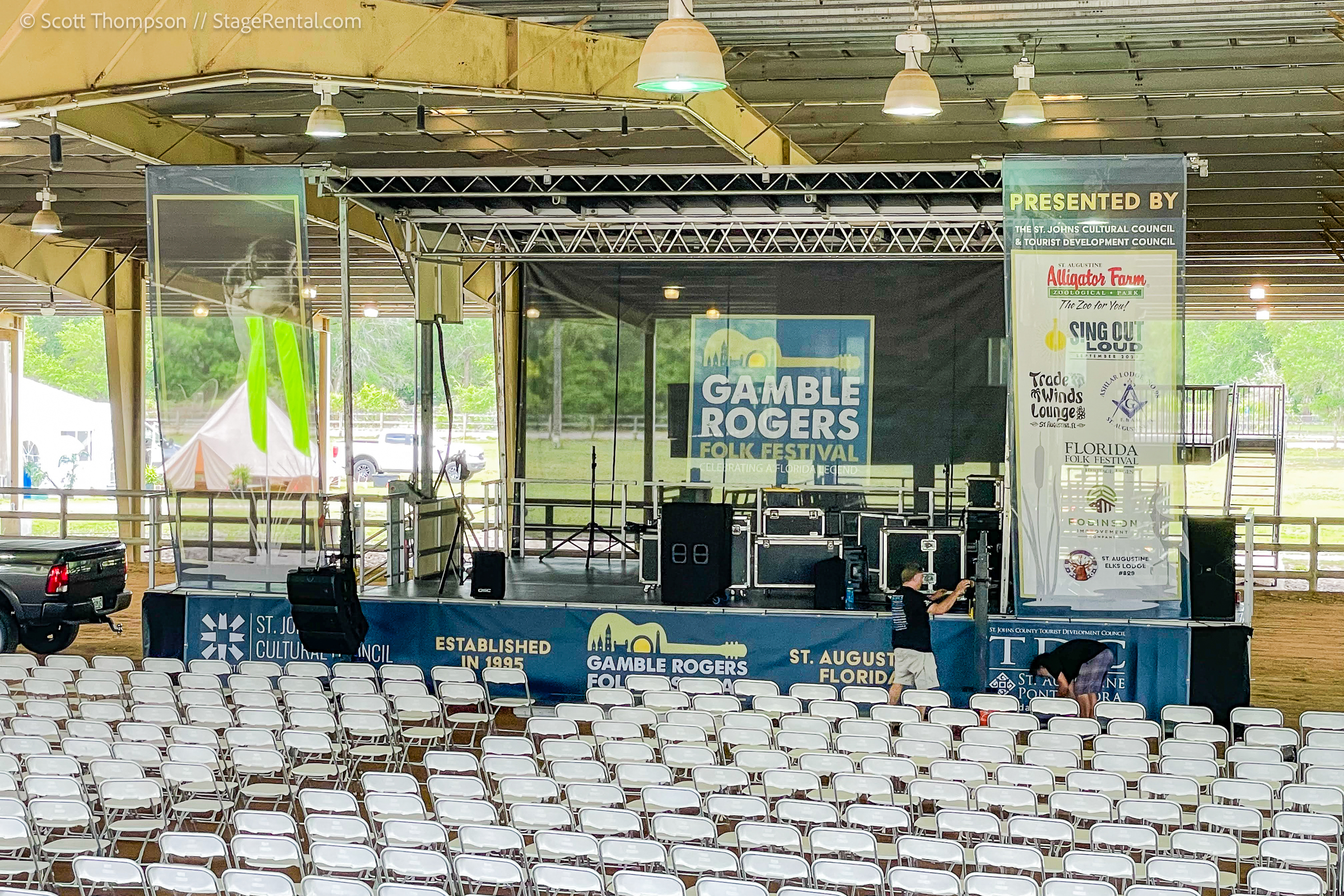

Pictures (click to enlarge):
